SPITFIRE
7.5 – 8.5m Aluminium Boat Trailer | 4500kg (ATM) 885D
From $20,479.00
Current ETA: 5-6 weeks
Finance me for: 71 p/w
over 50 months*

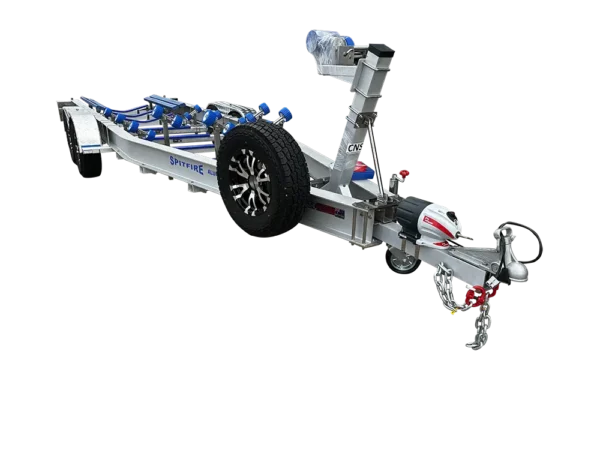

Crafted in Queensland for boats of 7.5 to 8.5 meters, the Spitfire 885D is the pinnacle of robust Australian trailer design, supporting up to 4500kg. Constructed from high-strength 6061-grade anodised aluminium, it features marine-grade Stainless Steel 316 fixtures. Dual axle torsion suspension ensures a smooth journey, while the submersible LED lights, and marine-grade stainless steel winch prioritize functionality. Safety is assured with both axle DEEMAX disc brakes, and its elegant design includes 15″ machined alloy rims and rolled aluminium guards. The Spitfire 885D: unrivaled quality, competitively priced.
*Note: Please call (07) 4410 9797 or email [email protected] to confirm stock availability before ordering. Placing a deposit confirms your order and allows us to confirm your delivery date. Adding options, and customisations will take time and will be confirmed at the time of your order. You can either place a deposit or pay for your order in full. Please note – there is a 5% cancellation fee if a refund is requested.
Specifications:
| MAKE: | Spitfire |
| TRAILER MODEL: | 885-4500 |
| CHASSIS RATING: | 4500kg |
| ATM: | 4500kg |
| TARE: | 840kg |
| DESIRABLE MIN TOWBALL WEIGHT: | 300kg |
| BOAT, MOTOR, FUEL WEIGHT ALLOWED: | 3660kg |
| TRAILER CHASSIS LENGTH: | 8850mm |
| TRAILER WIDTH: | 2490mm |
| WIDTH BETWEEN GUARDS: | 2010mm |
| KEEL ABOVE GROUND LEVEL – TRAILER LOADED: | 420mm |
| ENGINEERING DESIGN ASSURANCE & COMPLIANCE: | FEA / MVA1989-VSB1 |
| ALUMINIUM MATERIAL GRADE / STRENGTH / PROTECTION: | 6061 / T6 / Anodised |
| FIXTURES & FITTINGS, POSTS, BRACKETS, ETC: | Marine Stainless Steel 316 |
| AXELS / SUSPENSION TYPE / CORROSION PROTECTION: | Dual Axle / Torsion / Dacromet |
| TRAILER CONSTRUCTION: | Bolted / No chassis welds |

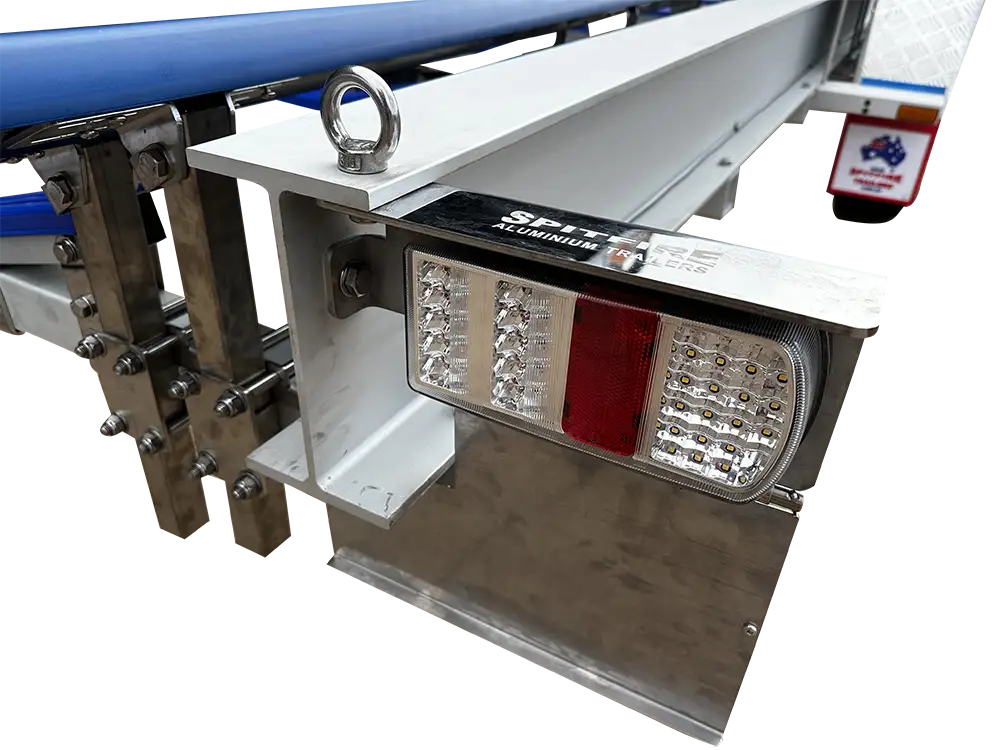

| LIGHTS: | Submersible LED, main + side (Sealed unit) |
| LIGHT CONNECTORS (Other types available): | 7-pin – Flat, Round or Big round on request |
| WINCH: | Machined S/Steel 316 – 1000kg |
| TRAILER CONFIGURATION: | Suits Drive-on or Winch-on |
| BRAKE TYPE: | Mechanical / Both Axle DEEMAX Disc |
| ELECTRIC OVER HYDRAULIC BRAKE ACTUATOR: | Required (iq7 or similar) |
| BRAKE MATERIAL OPTIONS FOR ROTORS AND CALIPERS: | Steel & optional full Stainless Steel |
| WHEEL RIMS / TYPE: | 15″ Alloy (Machined) / 245R15C |
| GUARDS: | Rolled Aluminium |
| JOCKEY WHEEL: | 10″ – Galvanised |
Keel Raising can be done to achieve extra height (not included) Total 8 Cross members including the 2 axles
