SPITFIRE
5.8 – 6.4m (19-21ft) Aluminium Boat Trailer | 2000kg (ATM) 700D
From $11,479.00
Current ETA: 1-2 weeks
Finance me for: 71 p/w
over 40 months*

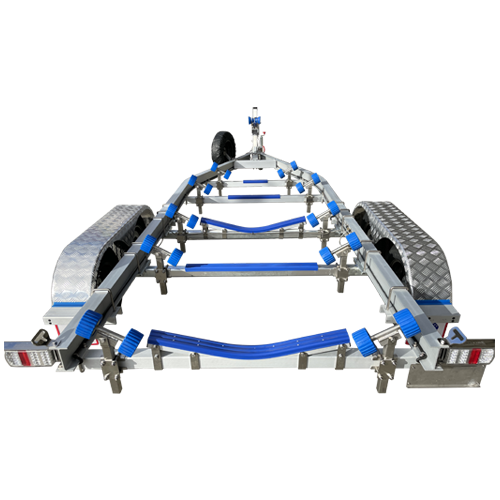

Tailored for boats between 5.8 to 6.4 meters, the Spitfire 700D offers a blend of strength and convenience, supporting weights up to 2000kg. Built with precision using the sturdy 6061-grade anodised aluminium, this trailer features marine-grade Stainless Steel 316 fittings for maximum durability. The single axle torsion suspension ensures smooth travels, while the DEEMAX disc brake on the same axle guarantees safety. Equipped with versatile submersible LED lighting, the 700D also boasts a 14″ machined alloy rim design. Additional highlights include its rolled aluminium guards, a robust 750kg machined stainless steel winch, and a galvanised 8″ jockey wheel, ensuring this model remains a top choice for reliability and style.
*Note: Please call (07) 4410 9797 or email [email protected] to confirm stock availability before ordering. Placing a deposit confirms your order and allows us to confirm your delivery date. Adding options, and customisations will take time and will be confirmed at the time of your order. You can either place a deposit or pay for your order in full. Please note – there is a 5% cancellation fee if a refund is requested.
*FREE Delivery is only available in Townsville, Brisbane, Cairns, Rockhampton, and Mackay.
Specifications:
| MAKE: | Spitfire |
| TRAILER MODEL: | 700-2000 |
| CHASSIS RATING: | 3500kg |
| ATM: | 2000kg |
| TARE: | 450kg |
| DESIRABLE MIN TOWBALL WEIGHT: | 120kg |
| BOAT, MOTOR, FUEL WEIGHT ALLOWED: | 1550kg |
| TRAILER CHASSIS LENGTH: | 7000mm |
| TRAILER WIDTH: | 2495mm |
| WIDTH BETWEEN GUARDS: | 2010mm |
| KEEL ABOVE GROUND LEVEL – TRAILER LOADED: | 420kg |
| ENGINEERING DESIGN ASSURANCE & COMPLIANCE: | FEA / MVA1989-VSB1 |
| ALUMINIUM MATERIAL GRADE / STRENGTH / PROTECTION: | 6061 / T6 / Anodised |
| FIXTURES & FITTINGS, POSTS, BRACKETS, ETC: | Marine Stainless Steel 316 |
| AXELS / SUSPENSION TYPE / CORROSION PROTECTION: | Dual Axle / Torsion / Dacromet |
| TRAILER CONSTRUCTION: | Bolted / No chassis welds |
| LIGHTS: | Submersible LED, main + side (Sealed unit) |
| LIGHT CONNECTORS (Other types available): | 7-pin – Flat, Round or Big round on request |
| WINCH: | Machined S/Steel 316 – 750kg |
| TRAILER CONFIGURATION: | Suits Winch-on |
| BRAKE TYPE: | Mechanical / Single Axle DEEMAX Disc |
| ELECTRIC OVER HYDRAULIC BRAKE ACTUATOR: | Not required |
| BRAKE MATERIAL OPTIONS FOR ROTORS AND CALIPERS: | Steel & optional full Stainless Steel |
| WHEEL RIMS / TYPE: | 14″ Alloy (Machined) / 185R14C |
| GUARDS: | Rolled Aluminium |
| JOCKEY WHEEL: | 8″ – Galvanised |
Keel Raising can be done to achieve extra height (not included) Total 7 Cross members including the 2 axles
HIGH QUALITY TRAILERS AT COMPETITIVE PRICES
The highest quality materials and service, bolted construction, and very competitive prices. If you’re in the market for an aluminium boat trailer, it’s a no-brainer.
BUILT IN QUEENSLAND,
SATISFACTION GUARANTEED
We’re committed to giving you the best customer experience we can. If you need any help with your Spitfire trailer and it’s not something that can be solved over the phone, just bring your trailer in to our Garbutt or Brisbane workshop and we’ll help you find a solution!
Still have a questions? Don't hesitate to contact us.
Send us an enquiry and our team can help you confirm which trailer is best suited to your boat. We can help you choose the best specification for your specific needs and any upgrades you want.
